Grinding Machine
Fine Grinding Machine
Material : Grains, pharmaceutical materials, etc.
Size : 80-200 mesh
Power : 45-132 kw
Capacity : 500-2100 kg/h
Guarantee : 1 year
Application : Find grinding for feed, food, building material, pharmaceutical, and some special aquatic feed.
SEND INQUIRY
Introduction of Ultrafine Mill
YMG fine grinding machine belongs to an advanced grinding machine with large capacity. It is widely used in feed production, food industry, building material, pharmaceutical, etc. especially for fine grinding of some special aquatic feed like fish meal, eel feed and shrimp feed. Its fineness can reach 200 mesh.
Main Features of Fine Powder Grinder
1. Compact Structure. The grinding chamber and the grading chamber are in one machine, which can finish grinding, air classification, separation and re-grinding procedures together.
2. 80 -200 mesh Fineness. Air classification system is controlled by high-precision micrometer and can be adjusted according to your requirement.
3. High strength alloy steel blade. It is of long service life and wear-resisting. At the same time, narrow V-belt can efficiently decrease the damage of spare parts and production cost.
4. Non-stop production for a long time. For ensuring it, we adopt high quality imported bearings and oil sealing and the main bearing is equipped with water cooling system.
5. Lower electricity consumption per ton. The final product is of uniform particle size and of high yield.

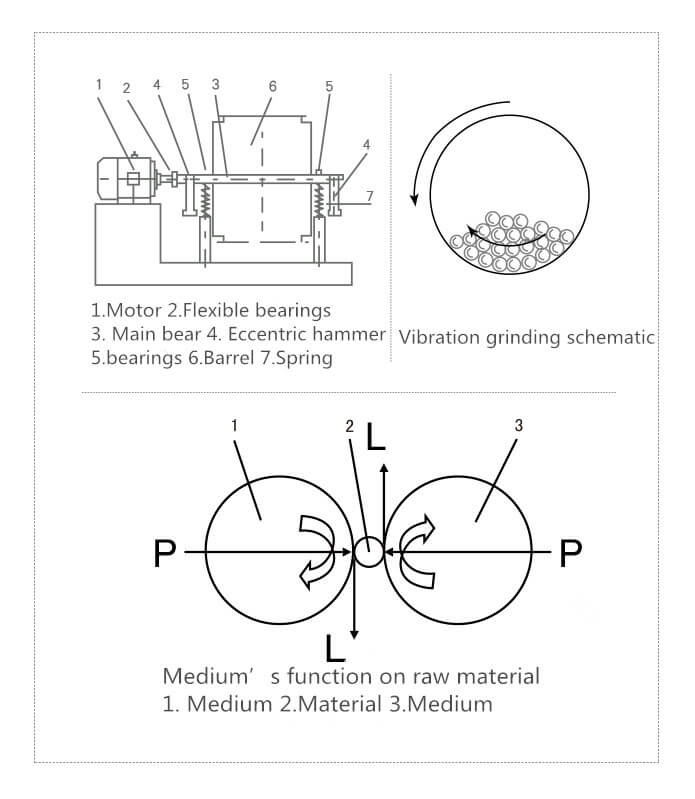

Working Principle of Automatic Grinding Machine
Technical Parameter of Fine Grinding Mill
| Project | SWFL75 | SWFL102 | SWFL128 | |
| Rotating speed of the rotor(rpm) |
2598 | 1878 | 1572 | |
| Rotating speed of grading(rpm) |
312-3120 | 240-2400 | 120-1200 | |
| Dia. Of the motor(mm) |
750 | 1020 | 1280 | |
| Power of the main motor(kw) |
45 | 75/90 | 110/132 | |
| Power of the grading motor (kw) |
5.5 | 7.5 | 15 | |
| Power of the feeding motor(kw) |
0.75 | 0.75 | 1.5 | |
| Noise( db) | ≦95 | ≦95 | ≦95 | |
| Dimension(l*w*h) | 2260*1950*1600 | 2950*2665*1901 | 3120*3225*2353 | |
| Capacity(kg/h) | Fish meal (95% over 80 mesh) |
600 | 1200-1500 | 1800-2100 |
| Shrimp feed (90% over 80 mesh) |
520 | 1050-1300 | 1600-1900 | |
| Eel feed (95% over 80 mesh) |
600 | 1200-1500 | 1800-2100 | |
| Power Consumption (kw.h/t) |
Fish meal (95% over 80 mesh) |
≦80 | ≦65 | ≦65 |
| Shrimp feed (90% over 80 mesh) |
≦90 | ≦75 | ≦75 | |
| Eel feed (95% over 80 mesh) |
≦80 | ≦65 | ≦65 | |
