Feed Cooler Introduction

Cooling of the feed pellets is indispensable in the process of feed pelletizing. Feed pellets come out from the pellet mill are with a temperature of 70℃-90℃. The counter flow cooler can cool them to 3℃-5℃ slightly above room temperature and reduce the moisture content to safety standard ( ≤12.5%). Thus they will be convenient to transport and store.


Features of Cross Flow Cooling Tower

1. It adopts counter flow cooling principle, which will efficiently prevent the pellet appearance from generating crazing.
2. Cooling tank is of octagon shape. It is better for more even cooling with higher efficiency.
3. The discharging device of feed pellet cooler is of slide valve reciprocating type. This is different from that of wood pellet cooler, which makes for particle integrity.
4. High cooling speed and favorable cooling effect. With same power, it has larger capacity.
5. It is equipped with visual door, which benefit easy operation and cleaning.

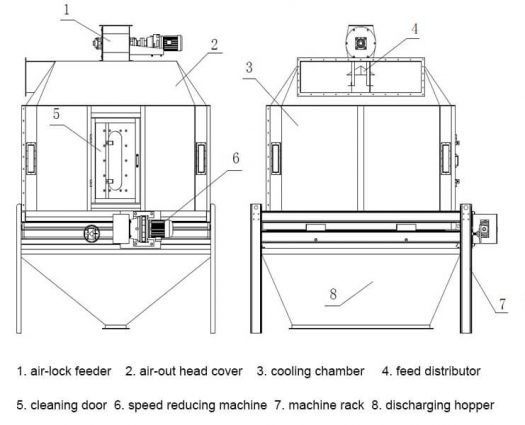

Structure of Counterflow Cooling Tower



Counterflow Cooling Tower Operating Tips

1. Before feeding materials, the cooling machine should be operated without loading. Observe whether the components inside the machine are normal.
2. Inspect and make sure that all bolts are tightened and make sure the leveling device and the limit switch are installed on the appropriate positions.
3. Inspect and make sure that there is no sundries inside the machine.
4. After stopping the machine, operators should clear all the materials out to protect pellets from bonding.
5. The machine should be greased regularly.

Specification of Counter flow Feed Cooler
