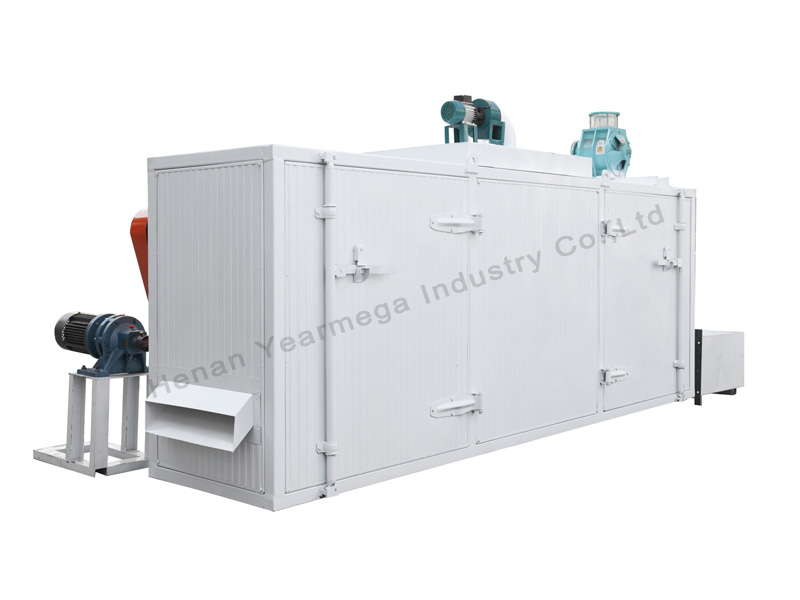

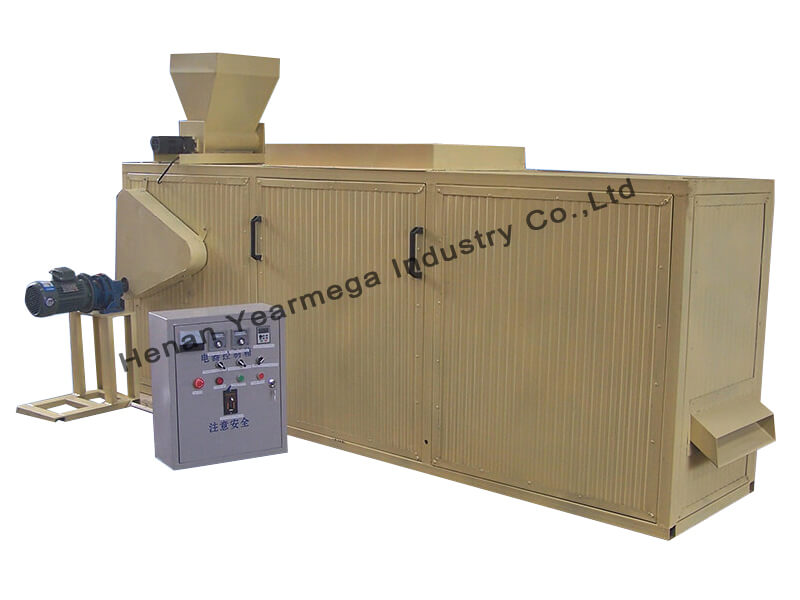

Drying Machine
Feed Pellet Dryer
Layers : 3-7
Drying Way : Eletric or steam
Capacity : 120-2000 kg/h
Guarantee : 1 year
Application : For fish feed pellet and pet food pellet drying
SEND INQUIRY
After discharging from fish feed extruder or pet food dryer, feed pellets is of high temperature and high moisture. So before storing and packing, we need fish feed dryer to dry it. And it is usually used in combination with fish feed cooler in the fish feed pellet line. It is of multi-layer structure and made of stainless steel, which ensure high efficiency and clean pellets. This pellet dryer machine is widely applied in chemical, food, medicine and other industries.
Unique Humanization Design of Our Fish Feed Dryer
Energy saving is very important in industrial production. We adopt electric drying design for dryer working with dry type fish feed extruder while we use steam drying matching wet type fish feed extruder, thus saving power over 80%.
Fish Feed Drying Machine Features
1. Steady drying, no damage to pellets. They lay on the mesh belt with low forward speed.
2. Main indexes are adjustable like air quantity, heating temperature, pellets’ staying time and feeding speed.
3. Hot air can be circularly applied.
4. Unique double design aiming at the differences of wet type and dry type fish feed extruder.
5. Ideal choice for drying fish feed and pet feed pellets and grains.
Working Principle of Fish Feed Dryer
Feed pellet dryer consists of circulation air blower, heating device, fresh air suction and exhaust discharging blower. The whole drying process is completed in a fully-sealed box. Feed pellets evenly spread on the mesh belt dragged by the transmission device. The hot air passes through the mesh-belt with special moisture from the top to the bottom or in the opposite direction., thus realizing drying. One par of air is circulated, some exhausted gas is discharged.
Technical Data of Fish Feed Dryer
No.1 For Dry Type Fish Feed Extruder
| Model | Capacity (kg/h) |
Heating Power ( kw) |
Mesh Belt Power (kw) |
Fan Power (kw) |
Number of layers |
Weigh (kg) |
| WH150 | 120-200 | 18 | 2.2 | 0.24 | 3 | 650 |
| WH250 | 200-300 | 24 | 2.2 | 0.24 | 5 | 850 |
| WH350 | 300-400 | 27 | 2.2 | 0.24 | 5 | 980 |
| WH500 | 500-600 | 27 | 2.2 | 0.67 | 5 | 1500 |
| WH750 | 700-800 | 30 | 3.0 | 0.67 | 5 | 2200 |
| WH1000 | 1000-1200 | 36 | 3.0 | 1.22 | 5 | 3100 |
| WH2000 | 1800-2000 | 45 | 4.0-5.5 | 1.47 | 7 | 3850 |
No.2 For Wet Type Fish Feed Extruder
| Model | Capacity (kg/h) |
Mesh Belt Power(kw) | Fan Power(kw) | Number of layers | Weight (kg) |
| WH150 | 120-200 | 2.2 | 0.12*2 | 3 | 650 |
| WH250 | 200-300 | 2.2 | 0.12*2 | 5 | 850 |
| WH350 | 300-400 | 2.2 | 0.12*2 | 5 | 980 |
| WH500 | 500-600 | 2.2 | 0.12+0.55 | 5 | 1500 |
| WH750 | 700-800 | 3.0 | 0.12+0.55 | 5 | 2200 |
| WH1000 | 1000-1200 | 3.0 | 0.12+1.1 | 5 | 3100 |
| WH2000 | 1800-2000 | 4.0-5.5 | 0.37+1.1 | 7 | 3850 |
