Flavoring Machine
Full automatic rotary oil sprayer
Material : Stainless Steel
Size : four models
Power : 5-8.5 kw
Capacity : 1-20t/h
Application : for shiny surface and/or special flavor
SEND INQUIRY
Description

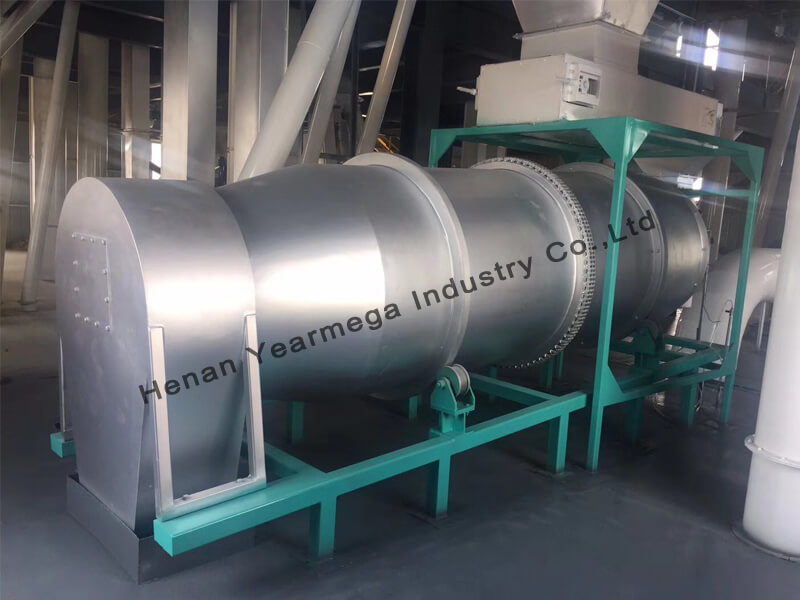

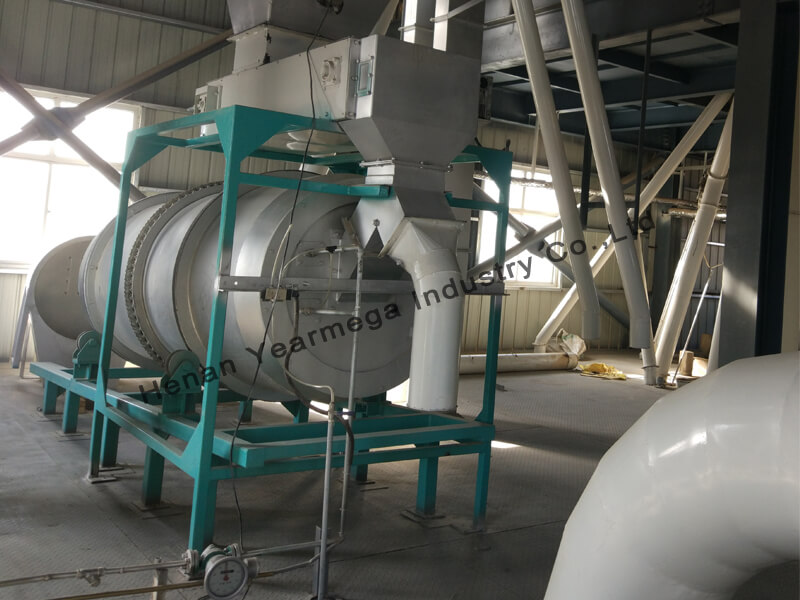

Full automatic rotary oil sprayer
For shiny surface, better smell and special flavor, rotary type oil sprayer machine is used to spray oil, fat or liquid flavors onto the surface of fish feed pellets. Yearmega automatic oil spraying machine is the ideal choice for fish food and pet coating, thus it is also called fish food and pet food oil coater, oil coating machine.
Main features
Using imported two-fluid atomizing nozzles, the nozzles will not be clogged, ensuring the atomizing effect of the added liquid.
The liquid addition ratio is arbitrarily adjusted between 1% -8%.
The use of imported PLC control system improves the uniformity of spraying to fish food and pet food, the equipment runs smoothly and reliably.
The flow of grease and additives can be measured automatically based on the flow of the material.
The difference in liquid metering accuracy is less than 0.1%.
Good smoothness of the sprayed material, beautiful appearance, and the spraying of the material surface is very even.
Compared with similar products, the length of the roller has nearly increased double and the material thickness has been increased double.
The Scope of Application
It is used to spray such as oils, probiotics, vitamins, and antioxidants or other heat-sensitive nutrients and medicine on the surface of extruded feed particles.
Main Parameters of Capacity and Power for the automatic oil sprayer
| Model | Power (kw) | Capacity(t/h) | adding proportion |
| PC900 | 5.6 | 1.0~5.0 | 1~8% |
| PC1200 | 6.3 | 1.0~10.0 | 1~8% |
| PC1500 | 8.1 | 4.0~14.0 | 1~8% |
| PC1800 | 8.5 | 6.0~20.0 | 1~8% |

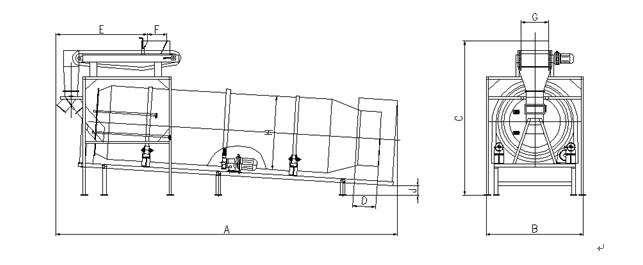

Dimension and Weight
| Model | Weight(kg) | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) | H (mm) |
| PC900 | 1900 | 3800 | 1500 | 2340 | 620 | 1301 | 400 | 400 | Φ900 |
| PC1200 | 2860 | 5429 | 1580 | 2774 | 450 | 1830 | 400 | 540 | Φ1200 |
| PC1500 | 4420 | 6950 | 1980 | 3140 | 470 | 1830 | 400 | 540 | Φ1500 |
| PC1800 | 6400 | 8460 | 2260 | 3500 | 470 | 1830 | 500 | 650 | Φ1800 |
