Hammer Mill
High Efficient Multi-cavity Crusher
Material : Corn, wheat, rice, beans, etc.
Models : SFSP series
Power : 75-250 KW
Capacity : 3-70 t/h
Application : For medium and large scale feed and food processing industry
SEND INQUIRY
Main Introduction
*The rotor diameter is increased, the linear speed increases by 1.2 times, and the efficiency increases more than 15%.
*The screen device is divided into several pieces to reduce the operating costs after the sifter worn. The septum is thickened to reduce maintenance.
*Reasonable structure: multi-cavity structure, hammer positioning, hammer and screen clearance is adjustable, suitable for both coarse grinding and fine grinding, oil lubrication, with high efficiency, low energy consumption and other advantages.
*The oil lubrication structure is adopted to solve the problem of high bearing rotation speed, large rotor load, also solve the problem of difficulty in production and short service life.
*Bearings imported from Sweden (SKF) bearings, the use of domestic famous motor brands to ensure the extension of life, reduce maintenance costs and increase production efficiency.
*The main welding parts, such as the casing and the base, are subjected to high-frequency oscillation and then processed as a whole.
*Widely used in feed, food, pharmaceutical, new energy, chemical industry and other materials crushing processing.
Main Technical Parameters
|
Model |
Power |

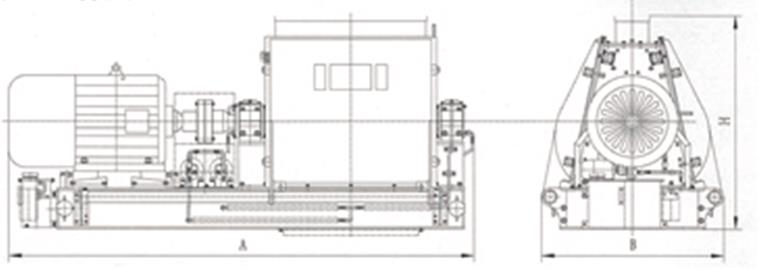

Dimension(mm) |
Cavities |
Hammers No.(pieces) |
Screen size(mm) |
Screen No.(pcs) |
Weight(kg) |
|||
|
A |
B |
H |
Coarse grinding |
Fine grinding |
||||||
|
SFSP7075 |
75 |
2690 |
1175 |
1492 |
2 |
80 |
120 |
416*860 |
4 |
3300 |
|
SFSP7090 |
90 |
2690 |
1175 |
1492 |
2 |
80 |
120 |
416*860 |
4 |
3380 |
|
SFSP70110 |
110 |
2940 |
1455 |
1507 |
3 |
96 |
144 |
339*860 |
6 |
3480 |
|
SFSP70132 |
132 |
3100 |
1455 |
1507 |
3 |
96 |
144 |
339*860 |
6 |
4220 |
|
SFSP70160 |
160 |
3280 |
1455 |
1604 |
3 |
120 |
180 |
416*860 |
6 |
4300 |
|
SFSP70200 |
200 |
3630 |
1455 |
1634 |
3 |
144 |
216 |
494*860 |
6 |
4780 |
|
SFSP70250 |
250 |
3710 |
1455 |
1634 |
3 |
144 |
216 |
494*860 |
6 |
4880 |
Capacity Parameters (t/h)
|
Screen size |
Ф0.6 |
Ф0.8 |
Ф1.0 |
Ф1.5 |
Ф2.0 |
Ф2.5 |
Ф3.0 |
|
SFSP7075 |
3.0-3.8 |
4.4-6.1 |
5.6-7.0 |
8.6-11.0 |
12.8-15.8 |
18.7-21.6 |
22.4-26.8 |
|
SFSP7090 |
3.2-4.2 |
5.4-6.6 |
7.2-8.2 |
11.5-13.0 |
13.6-16.8 |
20.1-24.4 |
30.6-35.0 |
|
SFSP70110 |
4.2-5.4 |
7.8-9.0 |
8.4-10.2 |
12.2-15.0 |
18.0-20.8 |
29.1-32.8 |
35.6-40.2 |
|
SFSP70132 |
4.8-6.0 |
8.5-10.4 |
9.0-11.2 |
14.5-18.2 |
20.0-23.6 |
31.6-36 |
41.2-48.2 |
|
SFSP70160 |
5.7-7.2 |
9.8-13.6 |
12.0-16.0 |
18.0-24.0 |
27.0-30.6 |
33-43.4 |
48.4-55.6 |
|
SFSP70200 |
6.7-9.0 |
10.8-15.6 |
14.1-18.0 |
21.6-28.2 |
30.0-36.6 |
39.6-49.2 |
56.2-66.0 |
|
SFSP70250 |
7.3-9.8 |
11.8-17.1 |
15.4-19.5 |
23.7-31.2 |
32.7-42.6 |
43.9-54.1 |
61.5-72.6 |
Note:
1. The series crusher capacity parameter refers to the measured parameters of various grain materials with the moisture content of 10-14% after crushing. The supporting equipment is designed and installed by our company.
2. φ0.4 screen, the fineness is 60 mesh, pass rate is ≥96.5%, and the 80 mesh pass rate is ≥95.0%.
3. φ0.5 screen, the fineness is 60 mesh, pass rate ≥ 94.6%, 80 mesh pass rate ≥ 92.4%.
4. φ0.6 screen, the fineness of 60 mesh, pass rate ≥ 93.0%, 80 mesh pass rate ≥ 90.1%.
