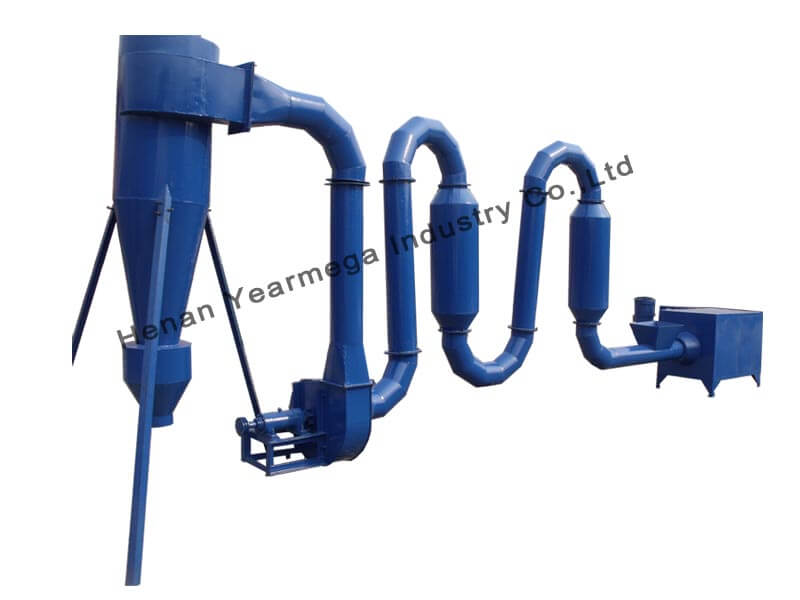

Pipe Dryer Introduction

For pelletizing or briquetting making, the requirement for raw material moisture is below 13% While the raw material is usually higher a lot. Herein, you need pipe dryer, also known as hot flue impulse type dryer or hot air dryer. It can reduce the moisture from 40-45% to 8-12% one time.
Yearmega pipe dryer features high drying efficiency, which is an ideal drying machine in charcoal briquette or wood pellet processing. We also have rotary drum dryer for higher capacity.


Sawdust Dryer Features

◆ High drying speed. The time only takes 0.5-5 seconds. No harm to wood material.
◆ High heating intensity. Due to the high hot air speed, every particle can get fully drying.
◆ Wide Application. It is right for material drying for charcoal briquetting, pelletizing, wood chips and sawdust production
◆ Wide range of hot air source: oil burner, gas stove, hot air coal furnace and vapor heat exchanger.

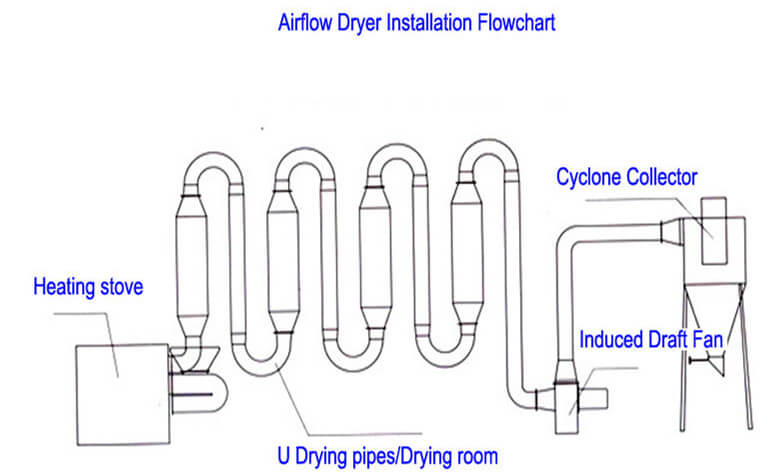

Pipe Dryer Structure and Work Flow

It consists of burner , draught fan, pipeline and cyclone. Wood material enters hot air stove though pipes and is sucked to cyclone by draught fan along with hot air. Then the dried wood material release from cyclone while the waste air and vapor go out from the above exit. The whole drying process only needs 3-5 seconds.


Technical Data of Sawdust Pipe
