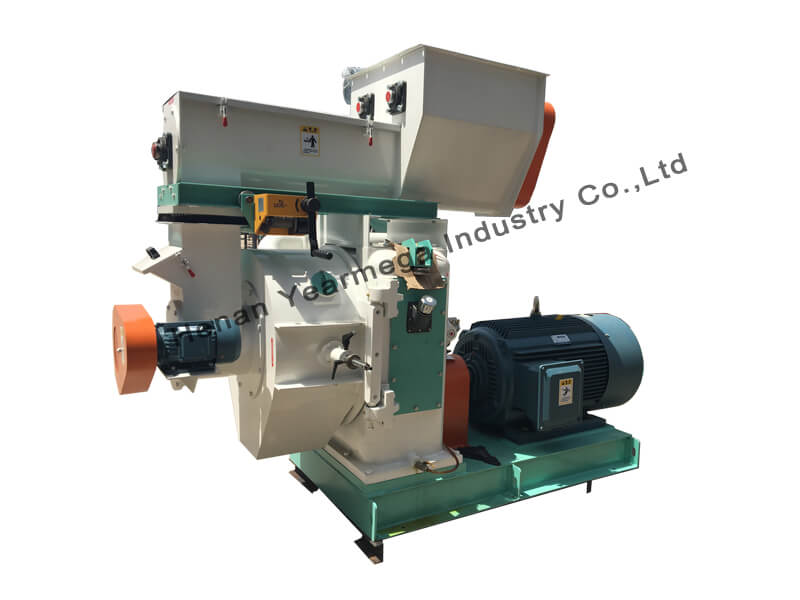

Wood Pellet Machine
Ring Die Wood Pellet Mill
Material : Wood chips, rice husk, sunflower seed shells and agricultural wastes
PelletSIze : 6/8/10/12 mm
Capacity : 0.5-4 t/h
Gurantee : 1 year
Appliction : for quality wood pellet production
SEND INQUIRY
Wood Pellet Machine Introduction
Ring die wood pellet mill is applied to make the agro and forestry wastes into solid fuels or wood pellets. The finished wood pellet is widely used for heating purposes of industrial boilers and large power plants as well as home use .
Yearmega ring die pellet mill is of advanced design and structure, greatly saving energy and improving efficiency 20%. The capacity of 0.5- 4 t/h is very suitable for small and medium business.
Rind Die Pellet Mill Features
1. Optimized Material: SKF bearing from Switzerland, imported oil seal, stainless steel and alloy steel die made by German gun drill and American vacuum furnace.
2. Advanced Design: Gear driving and imperative feeder device, improving efficiency 20% and ensuring smooth process.
3. Perfect Details: Frequency-conversion speed regulating control and compensation-type flexible coupling. Perfect details bring you better using experience and final products.
4. Permanent magnet device can remove impurities in the pelletizing process.
Ring Die Pellet Mill Working Process
It includes an imperative feeder system, high quality gearbox, ring die and lubrication system. The material is delivered into wood pellet machine through a conveyor and then transferred into pelletizing chamber by the screw feeder. Spinning rollers in the chamber force the material through the holes of the die, thus pellets being formed. After pelletizing, the length of the pellet can be cut according to different users’ request.
Why Wood Pellet Is So Popular
▷Wood pellet is an ECO-friendly fuel and of high fuel value. During the combustion process, it is no dust, no smoke and carbon neutral.
▷ Compared with home fossil fuel and electric heat, it is of great economic value.
▷ It can be used in a lot of appliances such as stoves, furnaces, boilers and other heating systems.
Wood Pellet Mill Technology Data
| Items | MKLH 35 |
MKLH 42 |
MKLH 508 |
MKLH 558 |
MKLH 678 |
MKLH 768 |
|
| Capacity (t/h) |
0.6 | 1 | 1.5 | 1.8-2 | 3 | 4 | |
| Main Motor Power(kw) |
55 | 90 | 110 | 132 | 220 | 315 | |
| Feed auger power(kw) |
1.5 | 2.2 | 2.2 | 2.2 | 3 | 4 | |
| Forced feeder power(kw) |
0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | |
| Inner Dia.of ring die(mm) |
350 | 420 | 508 | 558 | 678 | 768 | |
| Ring mold speed(prm) |
150 | 150 | 150 | 150 | 150 | 150 | |
| Feed auger speed(prm) |
12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | |
| Particle size (mm) |
6, 8, 10, 12 mm, etc | ||||||
| Number of rollers |
2 | ||||||
| Noise | ≦86 dB(A) | ≦90 dB(A) | |||||
| Die operating temperature |
≦85℃ | ||||||
